Golf Impact Screens and Hitting Screens at Budget Prices
High quality impact screens for any golf simulator bay or enclosure.
Our custom golf simulator impact screens are available in a variety of sizes We fabricate these golf sim hitting screens in house, so custom golf impact screens are never a problem!
Best prices on golf simulator impact screens!
- We will not be undersold -
These are the same golf simulator impact screens that ship with our Super Bay™, Micro Bay™, and DIY Bay™ golf simulator enclosures. You can easily install these golf impact screens in any enclosure. Our indoor golf screens can even be suspended from your ceiling with our Sky Bay™ Hanging Golf Sim Enclosure.
Features of Golf Simulator Impact Screens from AllSportSystems:

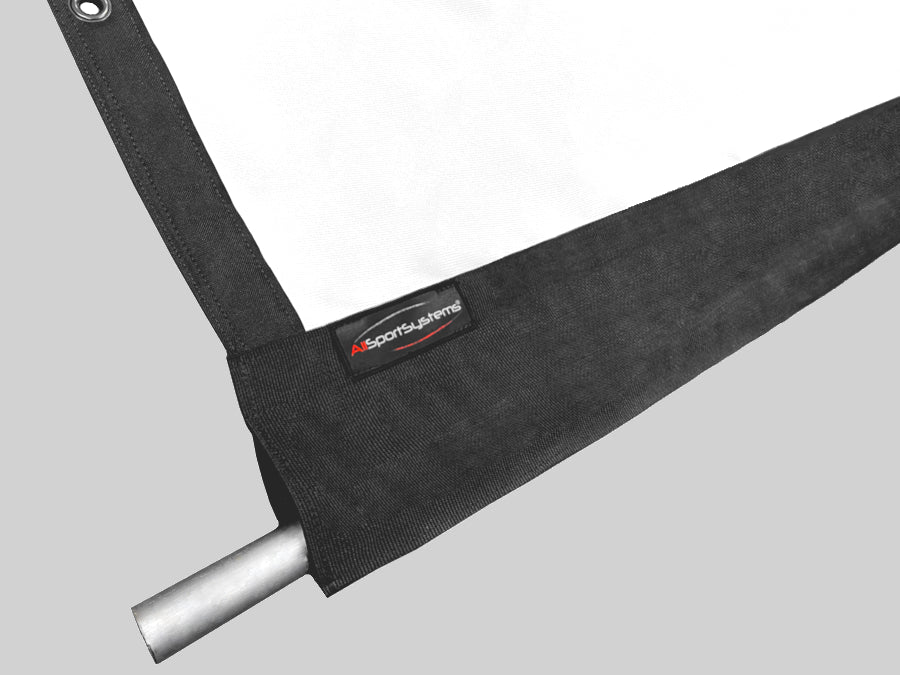

- Each golf impact screen is trimmed in black vinyl for a professional look.

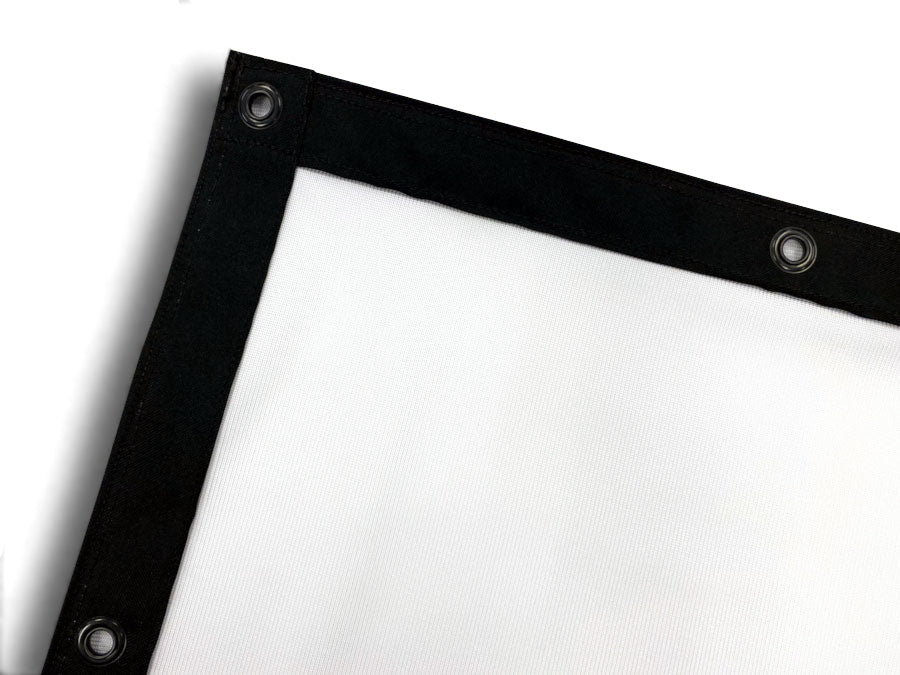

- Black grommets are installed along the top screen edge of the screen about 12" apart.
- Black grommets are installed in the bottom screen corners and 24" from the bottom on each side.
- Bungee cords (included) provide downward tension on each side of the impact screen.
- Zip ties (included) mount the golf hitting screen to any pole.
- Best quality materials and workmanship go into every golf simulator impact screen we make.
Add replaceable golf screen impact strips to extend the life of your main screen indefinitely!
- Optional replaceable impact strip hangs in front of the main screen and can easily be swapped out as needed.
- You may never need to replace your main screen!
- Order your replaceable golf screen impact strip here.
For the ultimate visual presentation add our patented Sky Bridge™ Span Brackets.

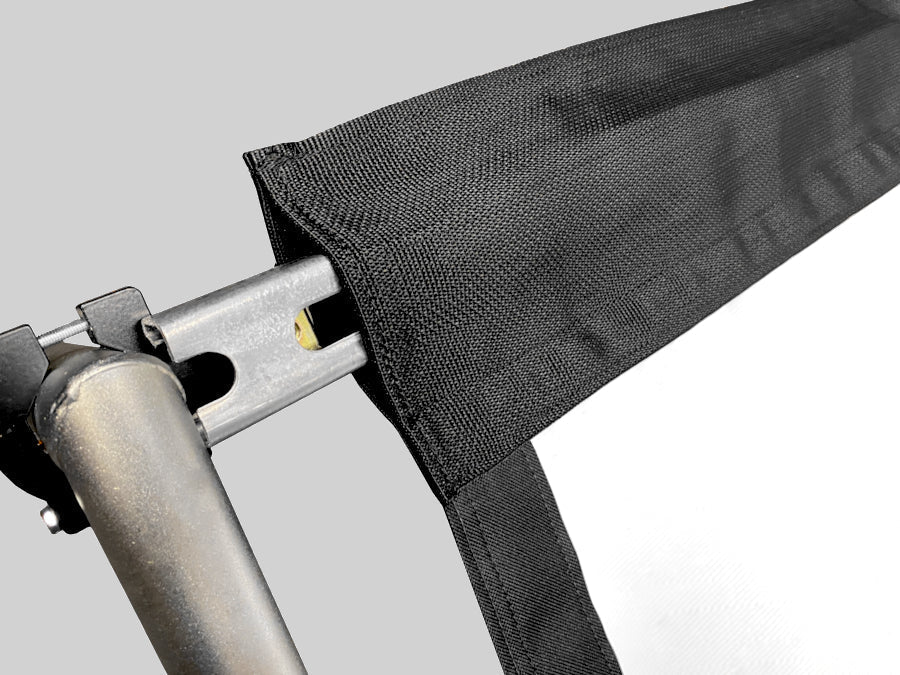

Sky Bridge™ replaces the simulator impact screen pole with rigid UniStrut, eliminating sagging and producing the flattest golf hitting screens possible! Highly recommended for systems more than 10' wide.
Other options include top or bottom pockets, Side Rite™ Tension System, custom shapes or trim, and more.
Need a custom golf simulator impact screen? Give us a call at 877-847-1280!
Check out our CLEARANCE Golf Impact Screens
and
RAW DIY GOLF SCREEN FABRIC.
FAQs about our Golf Simulator Impact Screens
Where can I get 1" EMT Poles?
1" EMT Poles and Unistrut are common building materials available at all major hardware stores. The shipping costs for these items can be expensive, so we try to save cost by not including them automatically. For convenience sake, precut 1" EMT Poles are available for purchase from us.
I purchased the SkyRailPLUS / SkyBridge Brackets. Do I need to buy strut locally?
SkyRailPLUS cage attached projector mounts include precut strut and all needed connection hardware.
SkyBridge Brackets do not include the strut.
How many 1" EMT Poles will I need to purchase?
Please see the setup guide for your enclosure to determine the number of 1" EMT poles needed, what lengths they need to be, etc.
How long should my golf simulator impact screen last?
Since golf hitting screens are fabric products, they will naturally wear over time. Factors such as swing speed, ball type, hitting position, and frequency of use will each affect the life of the screen. Many customers are able to get years of service out of our golf screens, while some may need to replace their screen sooner.
To extend the life of your golf impact screen we recommend using a baffle net, increasing the hitting distance, and using only newer "unscuffed" golf balls. The use of lighter weight products such as "Almost" Golf Balls (1/3 weight) can also significantly extend the life of your golf screen, although the shot distances will typically be shorter than when using real golf balls.
Will the projected image completely fill the screen?
All of our enclosures can produce viewports that match perfectly or near perfectly one of the three common aspect ratios commonly available on projectors. It comes down the width and height you order.
The viewport refers to the white portion of the screen that is visible after installation. We give careful consideration to the size of our golf hitting enclosures and the resulting viewport of your screen. Enclosures designed by AllSportSystems maintain a balance between a good image fit and enclosure size. For best overall function, safety and swing clearance an enclosure height of 9ft or more is recommended. When a space is less than 9ft we suggest an enclosure no lower than 8ft tall.
In general projectors will have a native aspect ratio of 4:3, 16:9 or 16:10. Aspect ratio is a means of expressing the ratio of width to height of the image in terms of pixels. A typical 4:3 resolution is 1024x768 where as a typical HD resolution is 1920x1080 (16:9) or 1280x800 (16:10). For the best image quality, we recommend using the native resolution of your projector where possible. All golf hitting enclosures from AllSportSystems can be customized to any height, width or depth. Do not hesitate to reach out with any questions about customizing your enclosure.
How far from the golf screen will my projector be?
Each projector model will have a specific throw ratio. A throw ratio is an expression of image width in feet divided by distance from the screen in feet. For example a projector with a 0.5 throw ratio can produce a 10ft wide image from 5 feet. For Golf simulation we recommend short throw projectors with a throw ratio of 0.5 to 0.7 as they place the projector close enough to the screen so that the golfer will not block the image.
Throw distance from the screen can be calculated for any projector using online projector throw calculators for your projector model.
How does the screen size compare to the enclosure size?
All of our golf enclosures are listed according to the outside dimensions of the frame. This guarantees your enclosure will comfortably fit within the space you have designated for your simulator.
Screen size and viewport of the screen varies by the dimensions of the product you order. The viewport refers to the white portion of the screen that is visible after installation.
Choose AllSportSystems for Your Home Golf Simulator Impact Screen!
High Quality Golf Simulator Screens Direct from the Manufacturer!
In the world of home golf simulator impact screens, one name stands out above the rest: AllSportSystems. Our track record of manufacturing high quality golf screens (spanning two decades!) makes us the premier choice for anyone in need of an impact screen for indoor golf.
Golf Simulator Screens You Can Trust
When it comes to investing in a home golf simulator impact screen, your manufacturer matters. AllSportSystems brings decades of expertise to the table, solidifying our reputation as a trusted leader in the golf screen industry.
Our long-standing presence in the market is a testament to our commitment to quality and customer satisfaction. Whether you're building your first home golf simulator or simply looking for a replacement impact screen for your sim, AllSportSystems has the expertise and experience to meet your needs.
Golf Screen Quality That Speaks Volumes: In-House Manufacturing
At AllSportSystems, we take pride in manufacturing our own products, including home golf simulator impact screens, in our state-of-the-art facility. Our in-house sewing team gives us full control over the production process, ensuring the highest standards of craftsmanship and quality in every golf screen we make.
By overseeing every step of the manufacturing process, from design to assembly, we can guarantee that each golf impact screen meets our standards for durability, performance, and aesthetics. Our commitment to in-house manufacturing also enables us to innovate and evolve our products to better serve our customers' needs.
Customer Support That Goes Above and Beyond
Whether you have questions about golf screen fabrics, installation, or troubleshooting issues, we're here to help. Our commitment to excellence extends beyond delivering high-quality golf screens to ensuring that our customers have a positive experience from start to finish.
When it comes to choosing a home golf simulator impact screen, AllSportSystems stands head and shoulders above the competition. Our legacy of quality, craftsmanship, and customer support make us the trusted partner you need to take your indoor golfing experience to new heights.
Experience the AllSportSystems difference today - and discover the best home golf simulator screens on the market!
